AVAILABLE INSTRUMENTS |
|||
CLASSIFICATION |
OPERATING PRINCIPLE |
FULL SCALE VALUE |
|
| DC | AMMETERS |
MOVING COIL TYPE |
0-50ľA up to 0-30A |
VOLTMETERS |
0-50mV up to 0-1000V |
||
| AC | AMMETERS |
RECTIFIER TYPE |
0-1mA up to 0-10mA |
VOLTMETERS |
0-3V up to 0-1000V |
||
DIMENSIONS ( Unit : mm) |
||

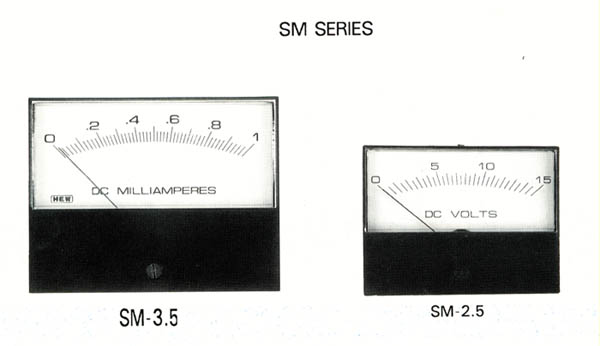

Model |
SM-3.5 |
SM-2.5 |
A |
95 |
77 |
A' |
74 |
59 |
H |
12 |
12 |
B |
57 |
47.5 |
B' |
57 |
47.5 |
H' |
23 |
23 |
H" |
14 |
14 |
D |
66.5 |
53 |
a |
28.5 |
23.8 |
b |
28.5 |
23.8 |
d |
67 |
53.5 |
e |
3.5 |
3.5 |
