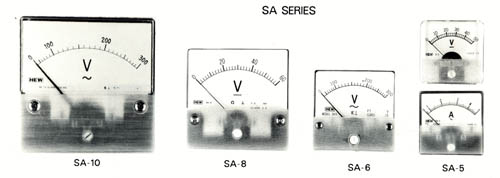

| AVAILABLE INSTRUMENTS with CE MARK | |||||
|
Classification |
Operating Principle |
Full Scale Value or Rating |
|||
| SA-10 | SA-8,SA-6,SA-5 | SA-4 | |||
| DC | AMMETERS | Moving Coil Type | NA | 0-50µA up to 0-30A | 0-50µA to 0-10A |
| VOLTMETERS | NA | 0-50mV up to 0-1000V | |||
| AC | AMMETERS | Moving Iron type | 1A up to 30A | 0-1A up to 0-30A | NA |
| VOLTMETERS | 0-50V up to 0-600V | NA | |||
| AMMETERS | Rectifier Type | NA | 0-1mA up to 0-10mA | ||
| VOLTMETERS | NA | 0-3V up to 0-1000V | |||
¡@

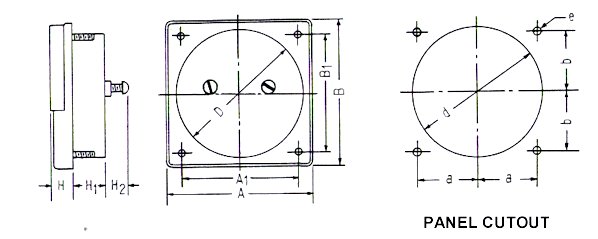

DIMENSIONS ( Unit : mm) |
|||||
Model |
SA-10 |
SA-8 |
SA-6 |
SA-5 |
SA-4 |
A |
100 |
80 |
60 |
50 |
45 |
B |
100 |
80 |
60 |
50 |
45 |
H |
14 |
14 |
13 |
11 |
10 |
A1 |
81 |
64.5 |
48 |
38 |
32 |
B1 |
81 |
64.5 |
48 |
38 |
32 |
H1 |
22 |
22 |
22 |
22 |
23 |
H2 |
12 |
12 |
10 |
10 |
13 |
D |
85.5 |
65 |
52.5 |
45 |
37 |
a |
40.5 |
32.3 |
24 |
19 |
15.5 |
b |
40.5 |
32.3 |
24 |
19 |
15.5 |
d |
86 |
65.5 |
53 |
45.5 |
38 |
e |
3.5 |
3.5 |
3.5 |
3.5 |
3. |

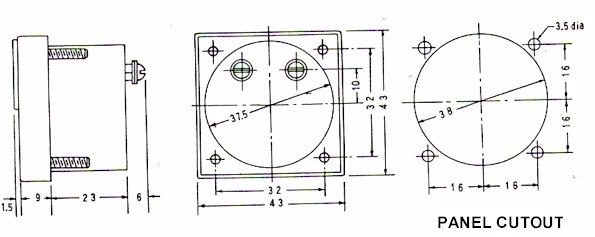

SA-4B (43 X 43) : BELOW DRAWING
¡@
