 DC AMMETER SHORT SHUNT* (1/3)

Application: Use with a DC Ammeter with 50mV

To extend the DC current measuring range from 50A to 150A.

* Not used for continuous operational application

Accuracy: 1.0% of rated value.

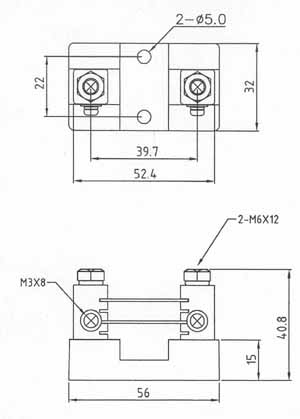

DIMENSIONS (Unit : mm)

for

50A/50mV, 75A/50mV, 80A/50mV, 100A/50mV,150A/50mV

STANDARD  |   50A-150A/50mV   |   200A-500A/50mV | 400A-600A/60mV   |
