 DC AMMETER MINI SIZE SHUNT

We only shorten the base of the standard type A shunt. It is used with continuous current loading.

RANGE:

1A/50mV TO 100A/50mV

Application: Use with a DC Ammeter with 50mV with  specified 50 mV meter to extend the DC current measuring range.

Accuracy: 1.0% of rated value.

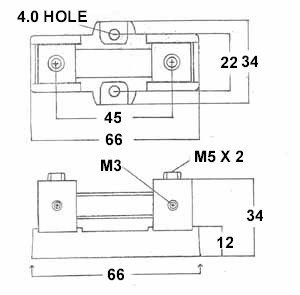

DIMENSIONS (Unit : mm)

STANDARD  | 1A-100A/50mV |
