SPECIFICATIONS

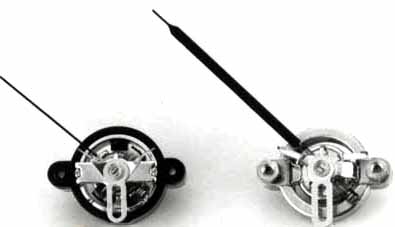

MODEL

KH-100

KH-200

TYPE

d'ARSONVAL

ACCURACY

2.5% of Full Scale.

1.5% of Full Scale

DEFLECTION ANGLE

90 DEGREE

APPLICATION

GENERAL ELECTRIC INSTRUMENTS

YOKE

CIRCULAR PLATE (PLASTIC)

LAMINATED (METAL)

POINTER

*TYPE" LANCE OR KNIFE EDGE

*COLOR: BLACK OR RED...

FULL SCALE



VALUE AND

1mA(50Ω) 350A(300Ω) 500A(200Ω)

APPROXIMATE

50A(2.3kΩ)

100A(1kΩ)

200A(800Ω)

RESISTANCE

40mV(4.7Ω)

50mV(12Ω)

60mV(14.4Ω)



SPECIFICATIONS

MODEL

KH-250

TYPE

d'ARSONVAL

ACCURACY

1.5% of FULL SCALE, 1.0% on request

DEFLECTION ANGLE

240 DEGREE OR 250 DEGREE

APPLICATION

GENERAL ELECTRIC INSTRUMENTS

YOKE

LAMINATED

POINTER

TYPE: LANCE TYPE, AIRCRAFT TYPE

COLOR: BLACK OR RED OR ORANGE...

FULL SCALE VALUE AND APPROXIMATE RESISTANCE

1mA     200Ω-1kΩ   100A         4kΩ
50mV      5-25Ω   200A         3kΩ
100mV       50Ω   500A         1kΩ
150mV       95Ω   1mA/60mV  60Ω
Upon Customer Specified Request

Dimension for | KH-100 | KH-200 | KH-200NEW | KH-250 |
